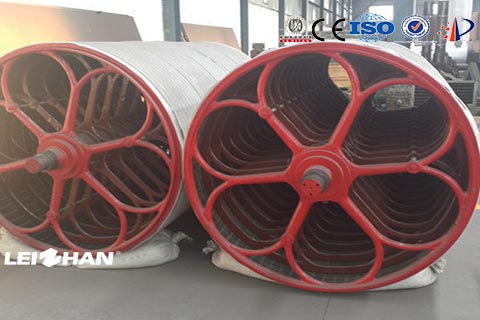

Cylinder Mould Used In Paper Making Machine

Cylinder mould used in paper making machine, is one of the forming devices of paper making machine and thickener, cylinder mould have features of high speed, high strength, low power consumption, long life time for wire. It can improve water filter area and speed, and increase the capacity.

Main Character Of Cylinder Mould Used In Paper Making Machine

Different Usage Type: paper making cylinder mould, concentrate cylinder mould.
Different Structure Type: common, air exhaust, vacuum.
Different Material Type: stainless steel
Specification Diameter(mm): 1000, 1250, 1500, 1800, 2000
Working Face Range: 1000-5000mm

Technical Parameter Of Cylinder Mould Used In Paper Making Machine

Diameter 1500mm
Face length 2000mm
Diameter of SS stick 12mm
Qty of SS stick 80
Qty of middle supportchip 14 pcs
Thickness of SS strip 15mm
Diameter of axis 180mm
Bearing model 113624
weight:1ton per set

Leizhan is a professional manufacturer of pulping & paper making equipments. If you are interested in any of our products, please feel free to contact us for further details.
